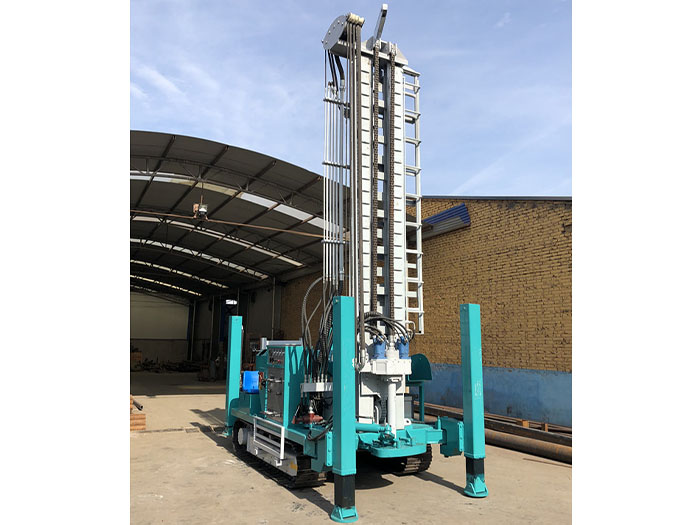

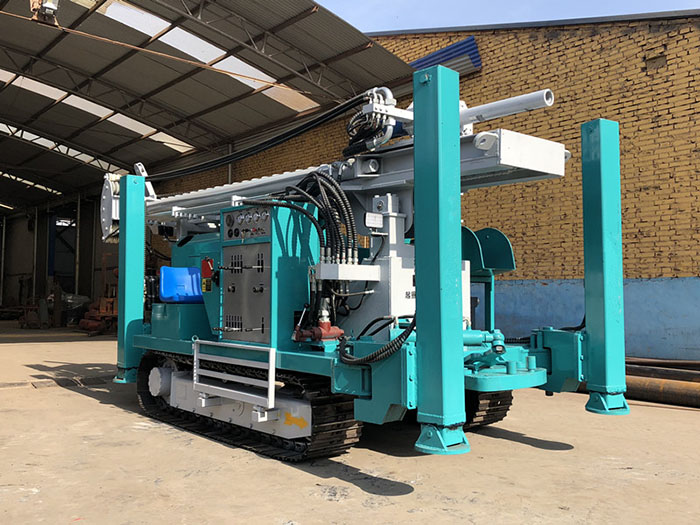

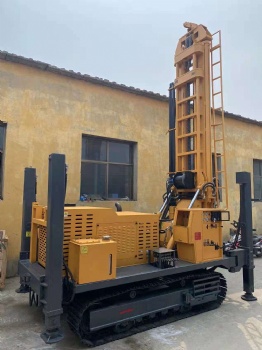

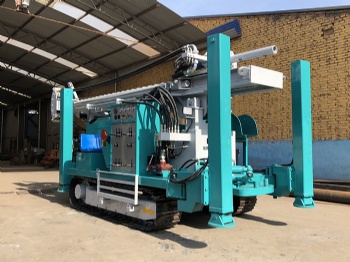

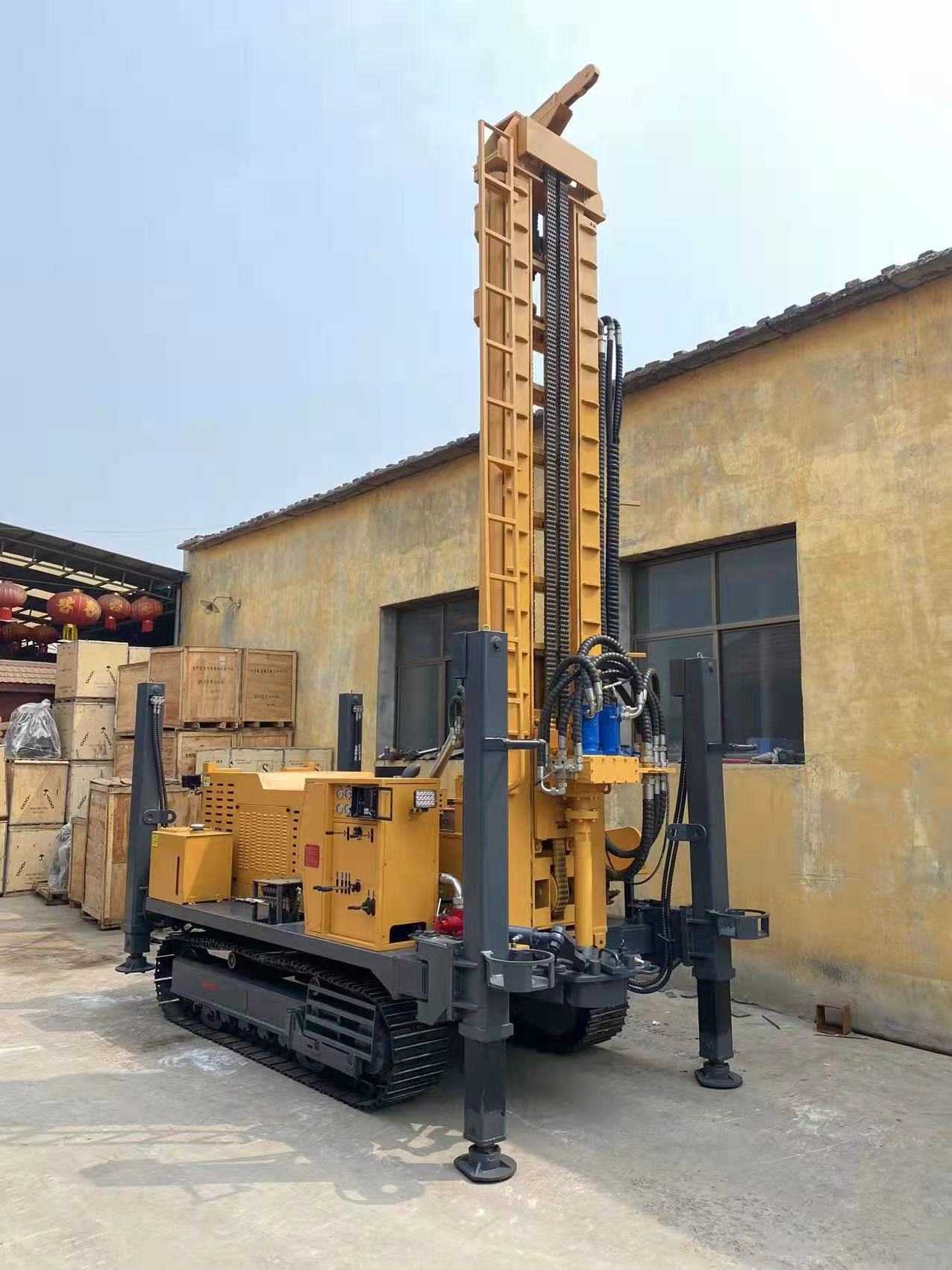

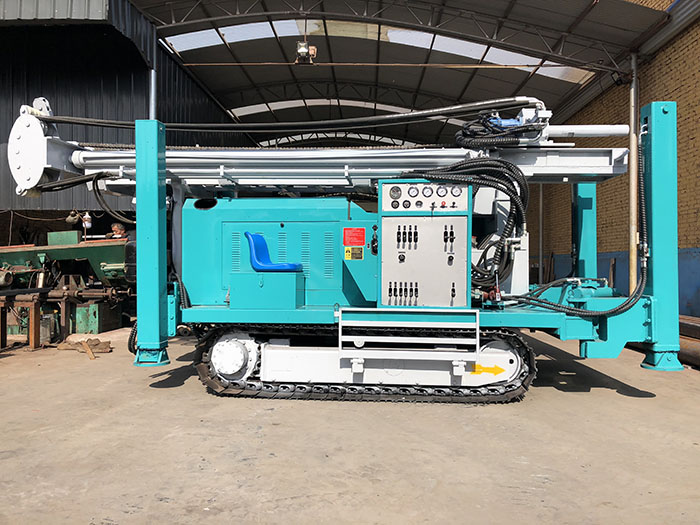

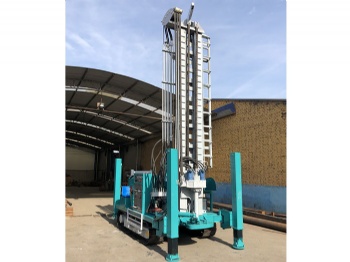

crawler-type drilling machinery 500S

500 s water well drilling rig

technical parameters:

Maximum drilling depth: 500 m

The hole diameter: 105-350 - mm

The work of wind pressure: 1.05-4.5 Mpa

Gas consumption: 16 - after 60 m/min

Drill pipe length: 3 m, 4.5 m, 6 m

Drill pipe diameter: 89/102/114 mm

Axis pressure: 12 t

Lifting force: 28 t

Speed: 3.0 m/min

The advance speed: 0.5 5 m/min

Fast lifting speed: 25 m/min

Fast-forward speed: 40 m/min

Maximum turning torque: 8500-11000 nm

The rotary speed: 75-150 r/min

Tool lifting lifting force: 1.5 T

Mud pump flow: 20 l/min (optional)

High hydraulic leg stroke: 1.65 m

Penetration efficiency: 10 to 35 m/h

Walking speed: 3.5 Km/h

Climbing ability: 21 °

Weight: 11.5 T

Engine: cummins 130 kw (6 cylinder)

To adapt to the conditions: loose bed and bedrock

Drilling method: top drive hydraulic rotation and propulsion, DTH impacter or mud drilling
